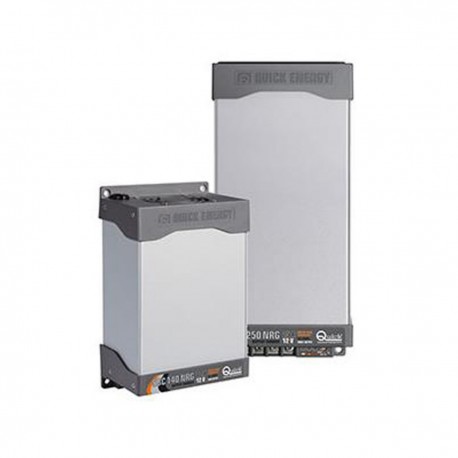

SBC NRG battery charger + 500 FR - Quick

The new battery chargers SBC NRG + are more compact and equipped with connectors that make practical quick connection. Due to their high efficiency (up to 92%), they are able to offer high power consumption reduction, less heat development and higher system reliability.

€1,006.90

Tax included

Reference: GA0596

Quantità

This product is no longer in stock

Product Details

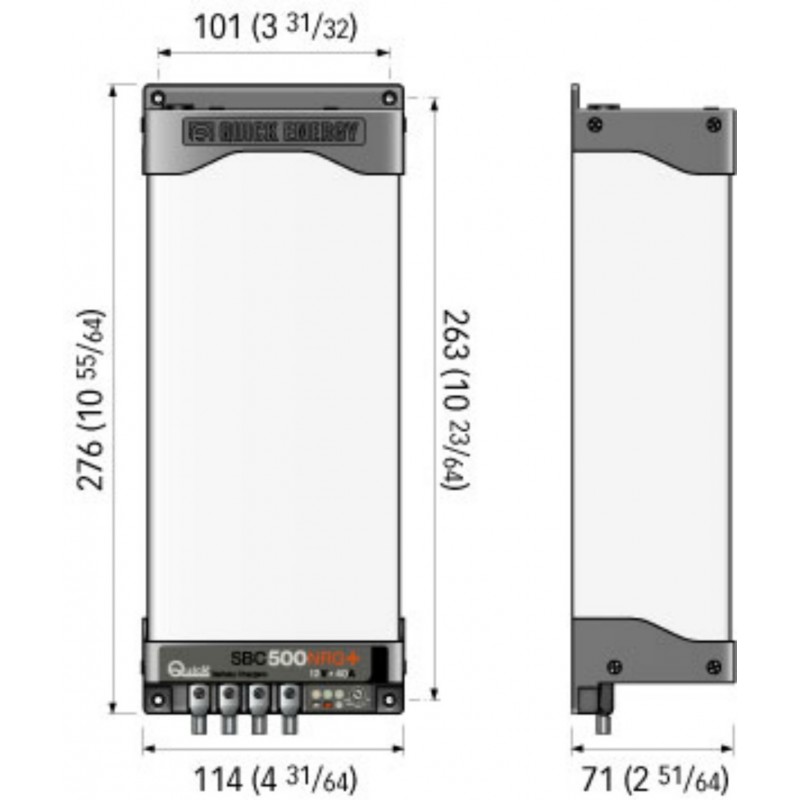

Height (mm): 276
Width (mm.): 114
Depth (mm): 71
Weight: 1.8 kg.
Supply voltage: 12 264÷83 Vac with power reduction under 108 Vac
Temperature of use: -15 ÷ 70 °C
Maximum output current: 40A
Charging voltage in absorption: 14.1 Vdc OL - 14.4 Vdc SL/GEL/AGM - 14.7 Vdc Optima® - 14.7 Vdc Optima
Float charging voltage: 13.4 Vdc OL - 13.6 Vdc AGM - 13.8 Vdc SL/GEL/Optima®
Number of outputs: 3
Frequency: 45 ÷ 66 Hz
Efficiency: ≥ 83%
Max absorption (230/240 Vac): 0.9 A
Max absorption (120 Vac): 1.7 A
Noise (acoustic): 45 dbA @ 1 m
Catalogue code: 3940859

Description

Quick has been designing and manufacturing battery chargers for about 25 years, has always proven to be a step ahead of market standards.
With the SBC series NRG once again confirms its success by choosing the most advanced technological solutions and devoting special care to improving energy efficiency.

The benefits derived from the new design translate into: reduced consumption, less heat development, contained acoustic noise, less invasive derating, and greater system reliability.

Also characterizing the new SBC NRG PLUS series are thereliability and advantages already tested with the previous ADV PLUS series and all levels of protection designed to ensure maximum safeguarding of the batteries, the ability to deliver full power even under extreme conditions and the use of high-quality components and materials.

Advantages:

IUoU three-stage charging feature.
High efficiency.
Multiple outputs to charge multiple groups of batteries.
Differentiated charging for liquid electrolyte batteries (open or sealed), gel, AGM, Optima®
Integrated output fuse inside the charger.
Ability to deliver full power with low AC mains supply voltage.
Low residual ripple on output.
Universal AC mains input
Power factor (cos ϕ) of 1.
Variable speed of the cooling fan.
Compatibility with generators.
Short circuit, overload, output overvoltage and overheating protections.
Operation over a wide range of ambient temperatures.
