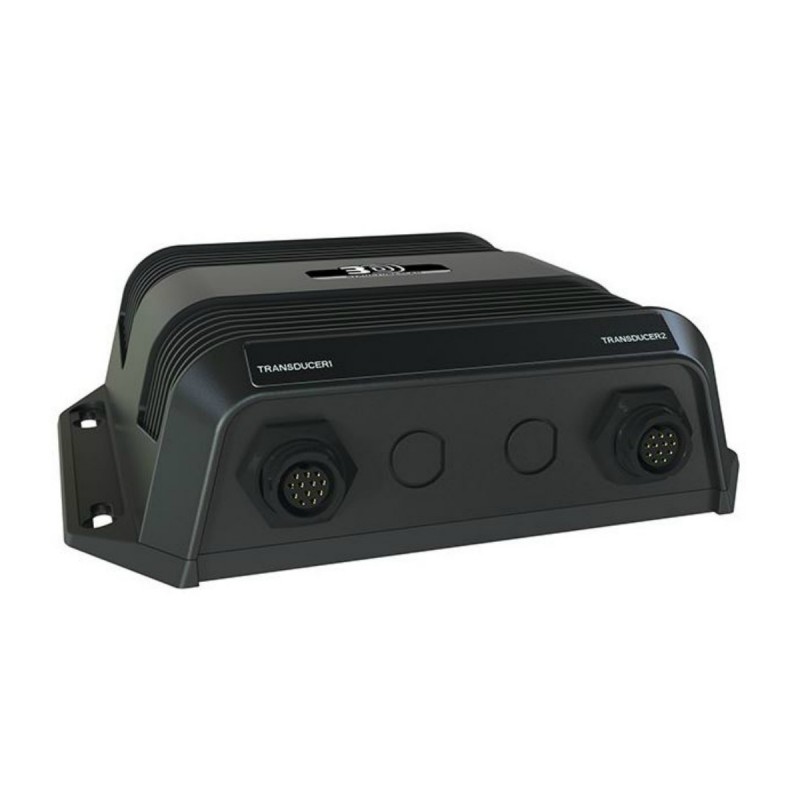

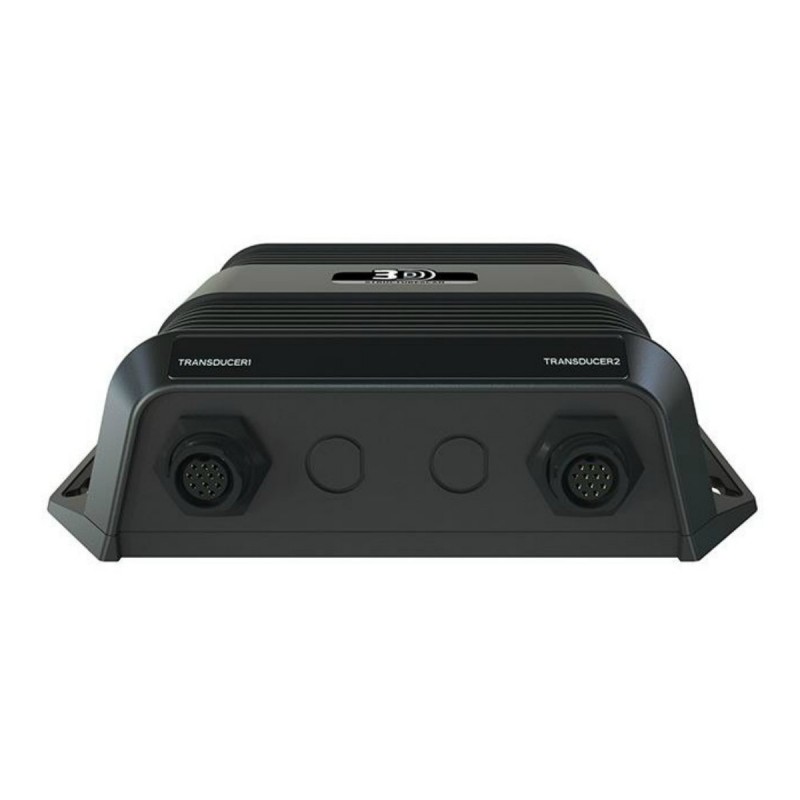

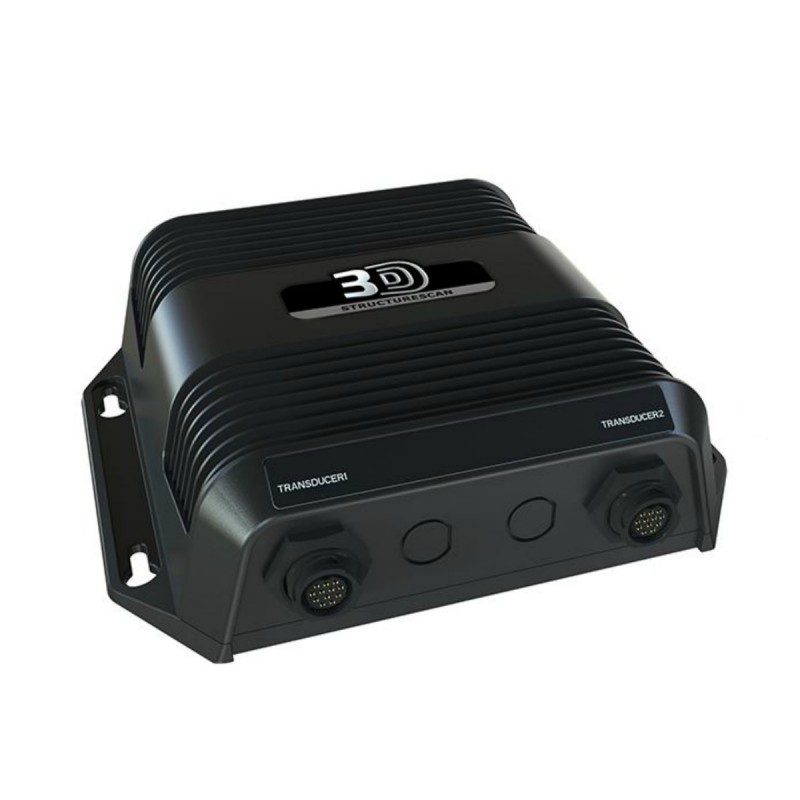

StructureScan® 3D Module - Lowrance

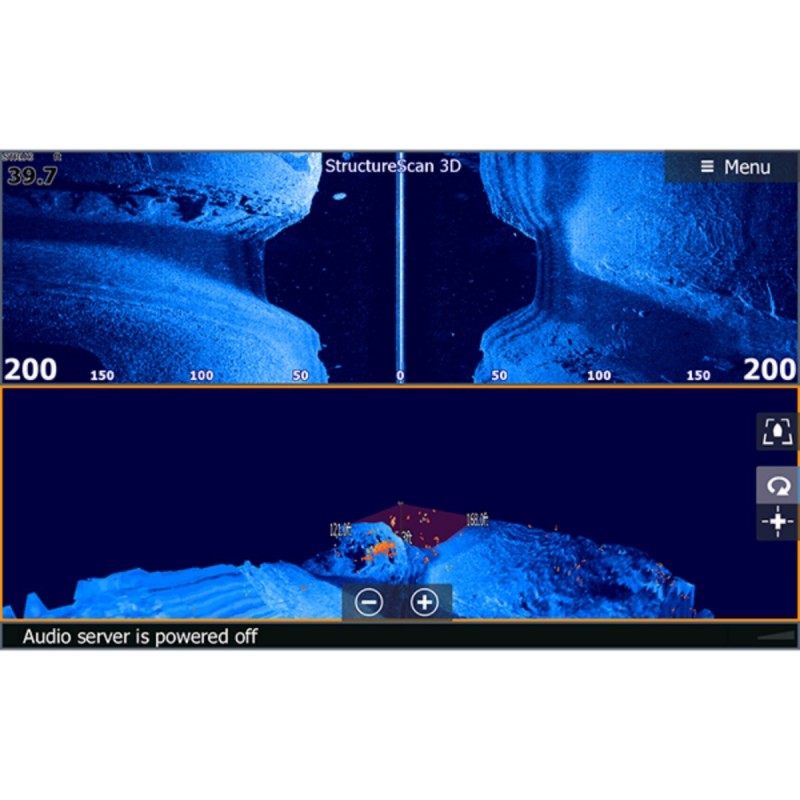

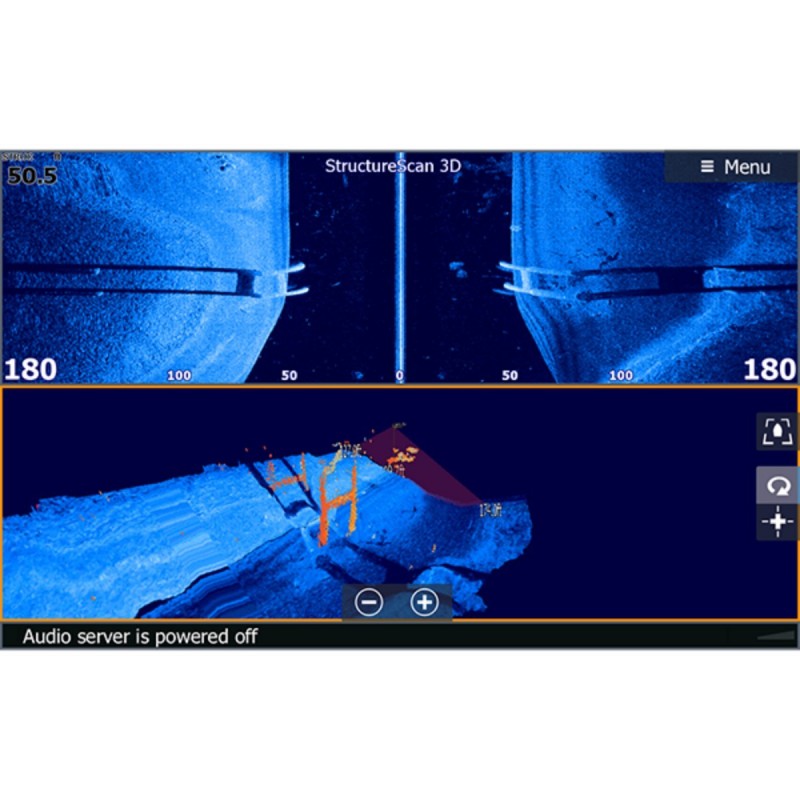

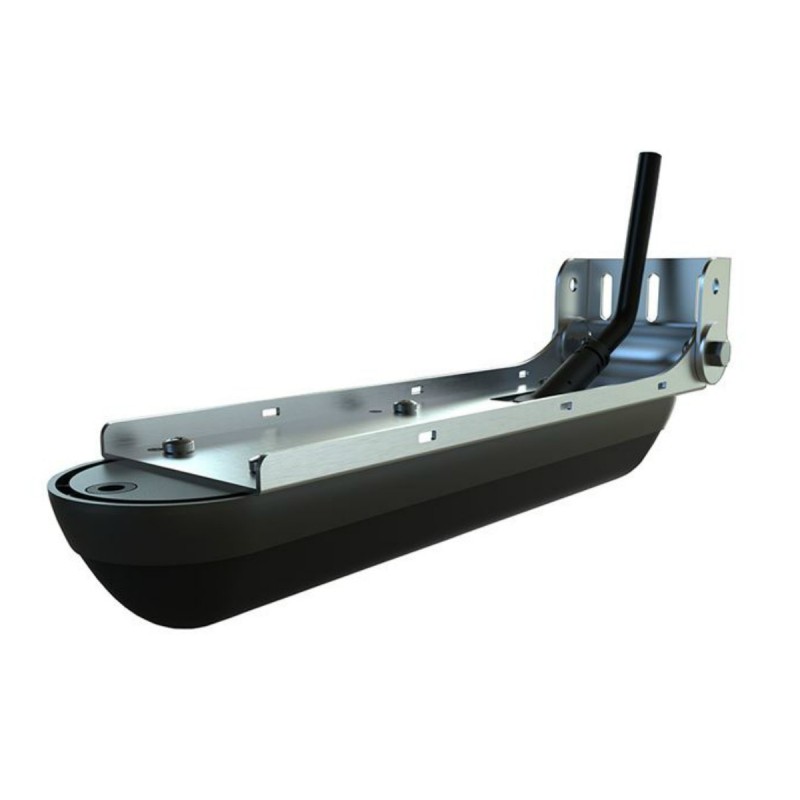

With these unique images, fishermen are more aware of the position of fish and structure relative to the boat. Photo-quality three-dimensional views are displayed on the Lowrance HDS Gen3 series fishfinders/chartplotters used in conjunction with the SideScan 3D Skimmer® transducer andStructureScan® 3D module.

Key features:

• Unparalleled SideScan image clarity
• Even broader high-definition (HD) 3D scanning
• Scan references Leading Edge™
• SelectScan™ target identification
• Vertical Enhancement control
• Waypoint overlays
• Automatic 3D image settings
• Ethernet connectivity

Specifications:

• Power Consumption: Max: .75A, Typical: .60A, Inrush: 4.7A pk
• Power Supply (Supply Voltage): 12 vDC

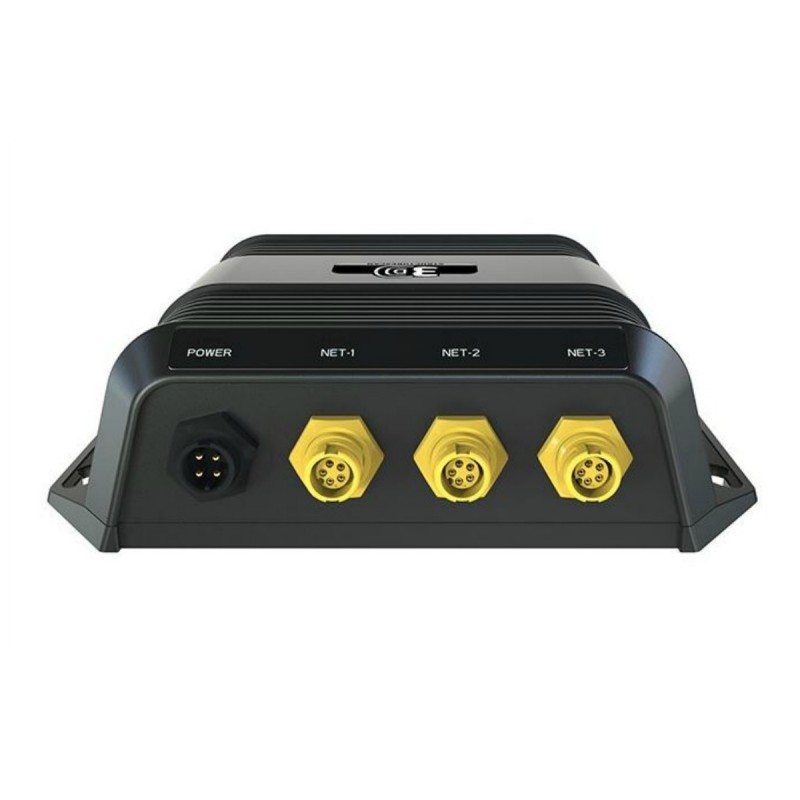

• Connectors: Ethernet
• Cable: 6 mt.
• Sounder Frequencies: Transmit Power: Max RMS: 500W
• Input Power: 10V - 17 VDC

Sonar:

• Max Side Range: 600 ft /180 mt.
• Max Down Range: 300 ft /92 mt.
• Enhanced Sounder Frequencies: 455 kHz
• Sonar Output Power Max RMS: 500 W
