Designed primarily for sailing ships, the compasses in the Olympic range offer a remarkably stable reading and remain usable at any angle of heel in all weather conditions.

Product Details

Catalogue code
P60912 P60913 P60996 P60997 P61205
3162420609960

Description

The Olympic 115 is recommended for use on sailboats from 6 to 12 meters.

Rose:

  • Conical or flat rose graduated every 5°.

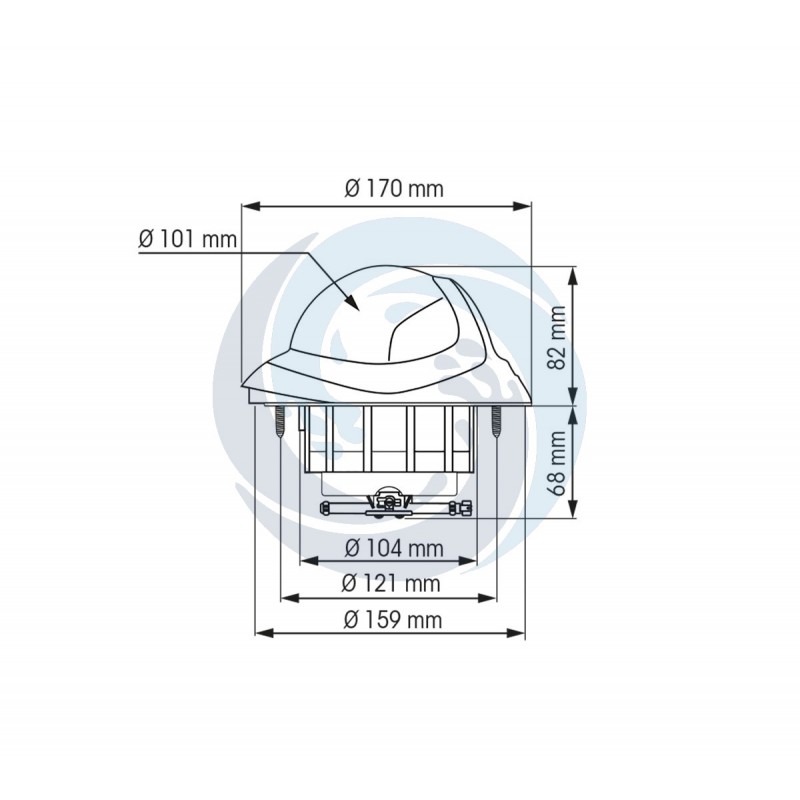

  • Apparent rose diameter: 101 mm.
  • Recall of the prore every 30°.

Alidade: 3 alidade, at 45°.

Type of mounting:

  • Recessed on horizontal planes
  • On binnacle (optional)

Compensation : Standard

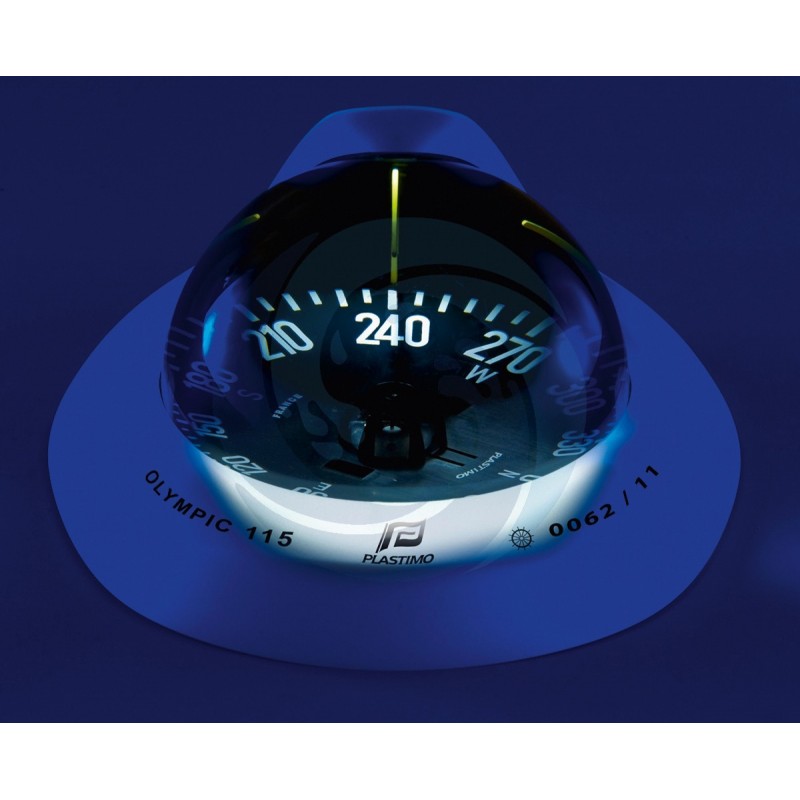

Lighting: Standard, 1 bulb 12/24V

Supplied with: Protective cover, screws, drilling template.

Homologation: SOLAS-MED 96/98.
