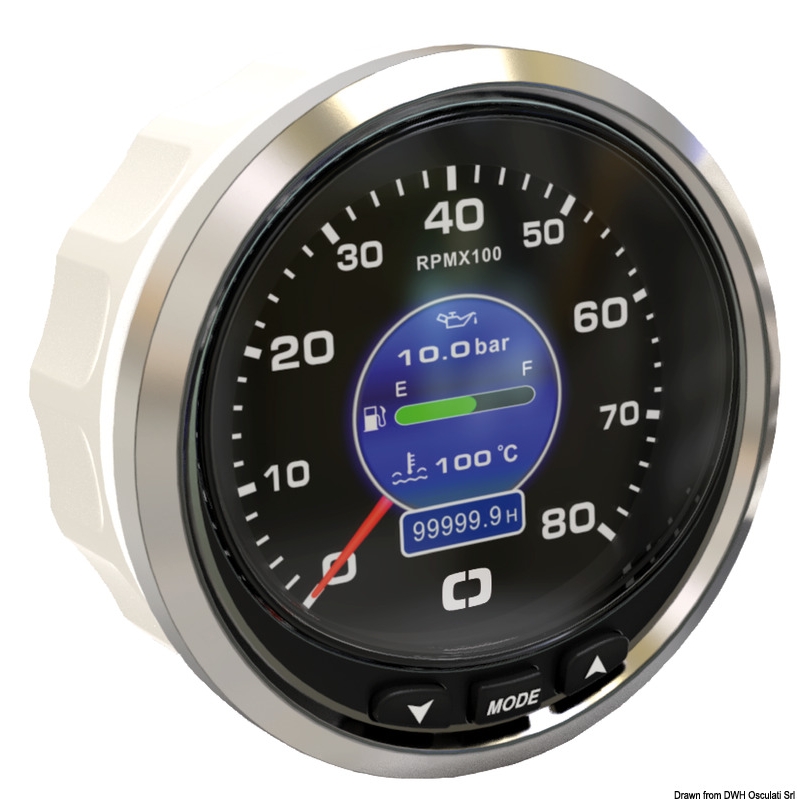

42104 LCD Multifunction Tool

LCD multifunction tool

Multifunctional LCD instrument

Description

Compatible with NMEA2000 / J1939 / analog protocols.
Can be used on any outboard / inboard engine except Mercury with SMARTCRAFT protocol.
Functions:
- spidometer via GPS signal (Knots, km/h, MPH);
- tachometer with full scale selectable at will from 3000 to 8000 RPM;
-

hour meter;
- fuel level alarm 10%


.


Selectable at will 0-190 / 240-33 ohms;
- oil pressure alarm at 0.7 bar (bar/psi scale selectable at will);
- water temperature alarm 95° (Celsius / Fahrenheit scale) selectable at will

.



Backlit dial (easily readable even in sunlight) with adjustable illumination. Power supply 9/32 V. Dial resolution 432x432 pixels.
Accessories supplied: 1 m 5-pin NMEA cable with standard end plug, 1 m 6-pin analogue cable.
