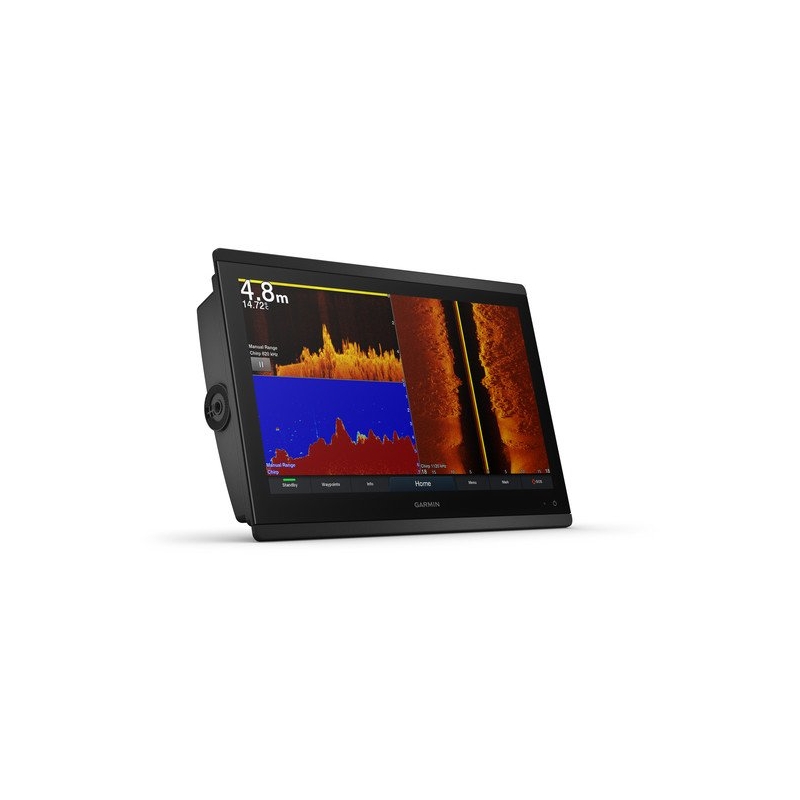

A wonderfully powerful, 360°-integrated instrument encased in an ultra-clear 16" full HD touch screen : among in-vehicle instrumentation, you’ve never seen a display like this. GPSMAP® 8416xsv is equipped with a high-performance processor to process cartography with unprecedented speed and allows you to customize screens, data and indicators. Everything is designed to allow the user to quickly access, with a single gesture, all the information needed in the most stressful situations, such as sleeping.
GPSMAP® 8416xsv integrates the most advanced echosounder features commercially available, thanks to the built-in two-channel CHIRP module with ClearVü-SideVü functions.
The complete CHIRP fishfinder
GPSMAP® 8416xsv encompasses three different technologies for viewing and scanning the seafloor in a single instrument: echosounder CHIRP, ClearVü CHIRP and SideVü CHIRP. These three different modes , combined together, provide the highest performance for identifying any feature present under and to the sides of the vessel. It also supports the entire family of Panoptixâ " ¢ fishfinders (transducers are sold separately).
Create your own integrated system
By connecting the GPSMAP® 8416xsv to the Garmin Marine Network, you can view data processed by on-board instrumentation such as radar, autopilots, sounder modules, multimedia devices (FUSION-Link), thermal imaging cameras, GRID and more on the display. GPSMAP® 8416xsv also allows information to be shared with other compatible GPSMAP units, such as maps and user data, including waypoints, routes and tracks. This means that user data entered can be automatically synchronized with other chartplotters on the network.
Limitless connectivity

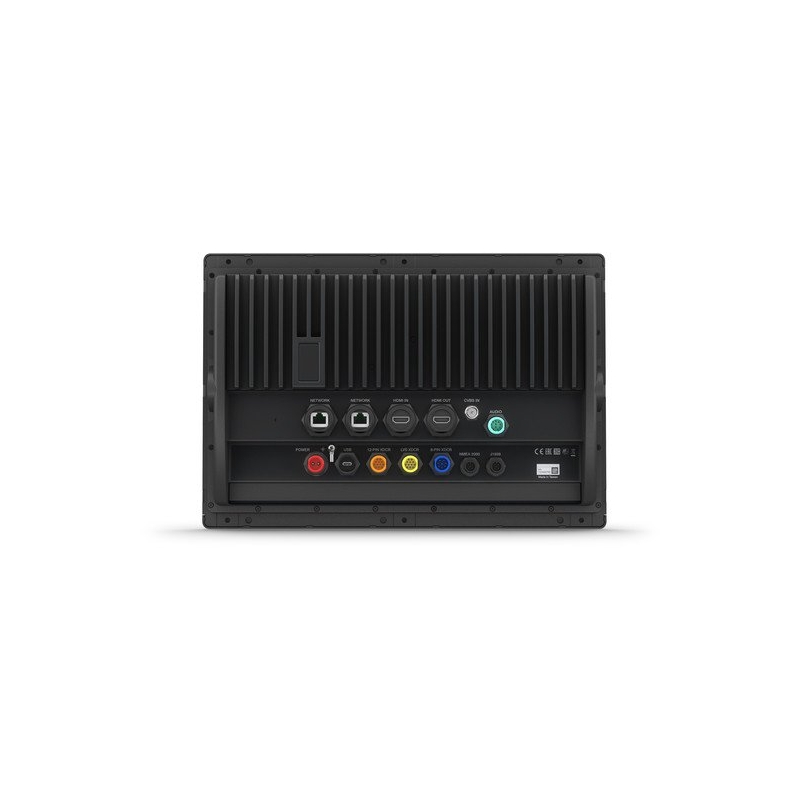

The new GPSMAP® 8416xsv chartplotter integrates seamlessly with a multiplicity of on-board instruments thanks to its built-in Wi-Fi® and ANT+ connectivity, 4 Ethernet ports, NMEA 2000 network, HDMI port, USB port and many more. It’s also compatible with FLIR cameras. Built-in Wi-Fi technology allows you to use the free ActiveCaptain® app to access OneChartâ"¢, Smart Notification1, community data Garmin Quickdrawâ " ¢ and more. You can also control streaming video playback from the GCâ " ¢ 100 wireless camera and VIRB® action cams. In addition, built-in ANT wireless technology allows you to directly connect your quatix® watch, gWindâ"¢ Wireless 2 transducer and wireless remotes.
Digital Switching
Completely new interface for managing MasterBus and Czone on-board networks. You'll be able to turn on engines, activate pumps, turn on underwater lights, and keep tabs on lights right from the chartplotter screen, all with intuitive, easy-to-use graphics.
Race Functions
The new GPSMAP® 8416xsv chartplotter has a useful feature dedicated to those who sail or compete in regattas. With SailAssistâ"¢ you can see on screen the right time to tack or gybe, view apparent and true wind angles at the same time, keep tabs on tides and currents, display heading and course line at the same time, activate the Pre-race guidance function to cut the start line at the right time and with maximum speed and keep tabs on the wind with intuitive graphs.
Make your boat smart
Use the new ActiveCaptainâ"¢ app to connect your Garmin Marine chartplotter to the mobile network and make your boat smart. ActiveCaptainâ"¢ is free and will allow you to make the most of your onboard instrumentation.
1Whenpaired with a compatible smartphone,
