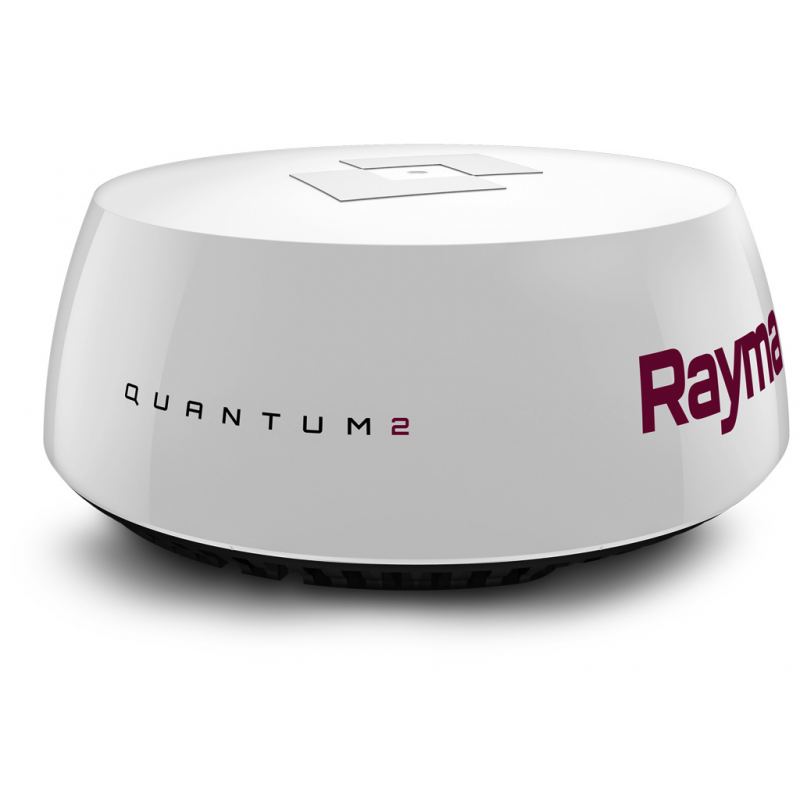

Radar Quantum 2 Doppler + Cavi alimentazione/dati da 15 mt. - Raymarine

Chirp pulse compression radar.

Package contents:

Quantum 2 radome antenna
15 m power cable.
M8 mounting bolts with spring washers and flat washers
Documentation (including installation template)

€2,921.90

Tax included

Reference: HA1367

Quantità

Ultimi articoli rimasti

Estimated delivery 06/05/2025

Product Details

Weight: 5.6 kg.
Power supply: 12 V 24 V
Power output: 20 W
Typology: Radome
Model: Quantum 2 Doppler without cables
Original Ref.: E70498
Series: Quantum 2 Doppler
Wifi: Yes
Other links: Network cable
Radar technology: Pulse compression
Radar range: 24 miles
Dimensions Ø/h: 541 x 209.5 mm.
Energy consumption: 17 W
Double interval: Yes
Radar overlay on map: Yes
Flocks of birds detection: No
Target Track: Yes
Auto gain: Yes
MARPA: Yes ARPA
Maximum wind speed: 100 knots

Description

Doppler visualization of the moving target and ARPA tracking and MARPA allow for greater awareness of what surrounds the vessel.

TrueTrails adjustable target history shows the movement history of moving contacts detected with CHIRP technology up to a minimum distance of 5 meters in zero visibility.

Traffic detection, navigational aids, landings and weather conditions up to 24nm with
excellent removal of noise caused by radar transmissions from other vessels.

Simplified installation via Wi-Fi or network cable.

Low power consumption allows longer battery life while sailing
sail.
