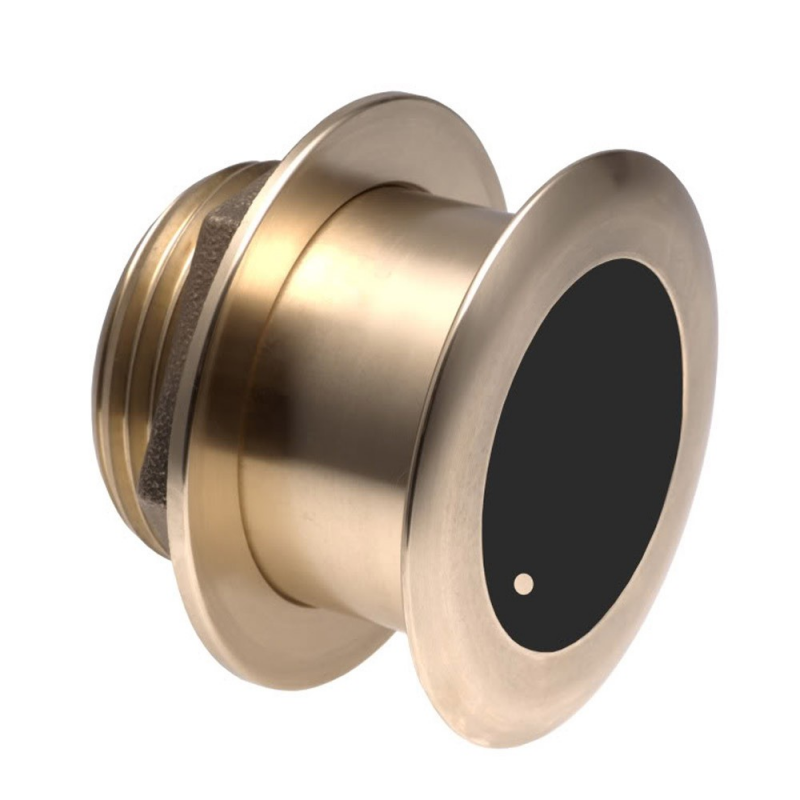

Transducer B175H-W 20° pass-through 7 pin - Lowrance, Simrad

Tilt 20 for 16-24° hulls - blue 7-pin sonar connector

€2,011.66

Tax included

Reference: GA2148

Quantità

This product is no longer in stock

Product Details

Material: Bronze
Compatibility: B Lowrance Elite Chirp Lowrance HDS Carbon Lowrance HDS Gen3 Lowrance HDS Live Simrad NSS Evo2 Simrad NSS Evo3
Frequency: 135/210 kHz
Sonar: CHIRP / Fishfinder
Model: B175H-W
Original Ref.: 000-11691-001
Maximum depth: 152 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning: No
Scanning the sides of the boat: No
3D Scanning: No
Brand: Lowrance/Simrad/B
Power: 1 kW
Mounting type: Through installation
Hull angle: From 16° to 24°.
For hulls: Fiberglass Wood
Displayed data: Depth Temperature
Connector PIN: 7 pins
Compatible without adapter: Lowrance Elite Chirp Lowrance HDS Gen3
Compatible with adapter: B Lowrance HDS Carbon Lowrance HDS Live Simrad NSS Evo2 with adapter 5605251 Simrad NSS Evo3
Traditional scan: Yes
Transducer Tilt (TILT): 20°

Description

1 kw bronze high-band pass-through Chirp transducer with frequencies from 135 to 210Khz. Ideal for use on sport boats and commercial vessels. This single-channel, wide-beam transducer offers improved resolution and greater coverage in shallower depths. Suitable for fiberglass, wood and metal hulls (when properly insulated). For hulls from 16 to 24°. With temperature sensor. Capable of reaching 300* Mt depth (indicative value only may vary depending on installation and marine conditions). 25° beam aperture cone. Compatible with HDSGEN3, CARBON, Simrad NSS EVO3. Does not allow operation of Structurescan and Sidescan without the appropriate additional transducer. 12 m cable extendable with item 5605250 by another 6 m. CHIRP FREQUENCY BAND from 135 to 210 KHZ
