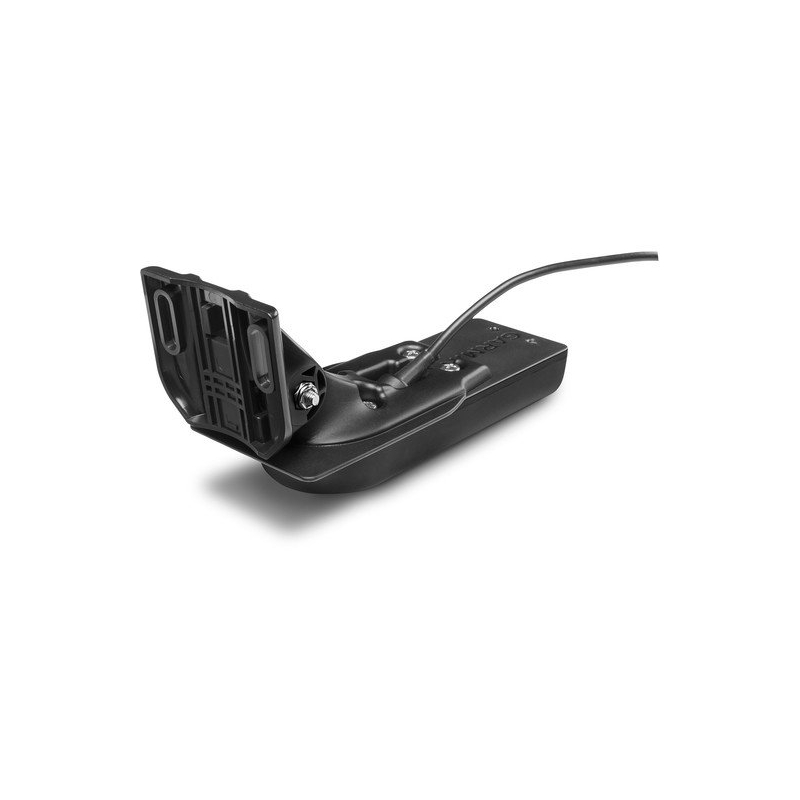

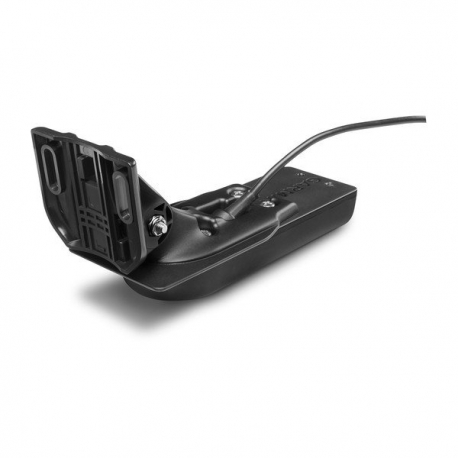

GT20-TM transom transducer 8 pin - Garmin

Get ultra-sharp images of objects, structures, and fish below your boat with this 8-pin multifunction transducer.

This 20-foot transducer cable with fast, built-in temperature sensor has 500 W power; 1,900-foot depth (traditional) and 750-foot depth (ClearVü)

€159.00

Tax included

Reference: HA3557

Quantità

This product is no longer in stock

Product Details

Material: Plastic
Compatibility: Garmin EchoMAP Chirp CV Garmin EchoMAP Plus CV Garmin EchoMAP UHD Garmin EchoMAP Ultra Garmin GPSMAP xs Garmin GPSMAP xsv
Frequency: 77/200 kHz 455/800 kHz
Sonar: CHIRP / Fishfinder ClearVü
Model: GT20-TM
Original Ref.: 010-01960-01
Maximum depth: 579 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning: Yes
Scanning the sides of the boat: No
3D Scanning: No
Brand: Garmin
Power: 500 W
Mounting type: Stern installation
Hull angle: From 0° to 70°.
For hulls: Fiberglass Metal Wood
Displayed data: Depth Temperature
Cable length: 6 m.
Connector PIN: 8 pins
Compatible without adapter: Garmin EchoMAP Chirp CV Garmin EchoMAP Plus CV Garmin GPSMAP xs Garmin GPSMAP xsv
Compatible with adapter: Garmin EchoMAP UHD and Garmin EchoMAP Ultra with 8-pin to 12-pin Adapter Cable
Traditional scan: Yes

Description

Get ultra-sharp images of objects, structures and fish below your boat with this 8-pin multifunction transducer.

This 20-foot transducer cable with fast, integrated temperature sensor has a power rating of 500 W; a depth of 1,900 feet (traditional) and 750 feet (ClearVü); an operating frequency of 77/200 kHz (traditional) and 455 kHz (ClearVü); and a stern angle of 0 to 70 degrees.

The transducer comes with transom and trolling motor mounts and installation instructions. Follow the instructions carefully to avoid damage to your boat.
