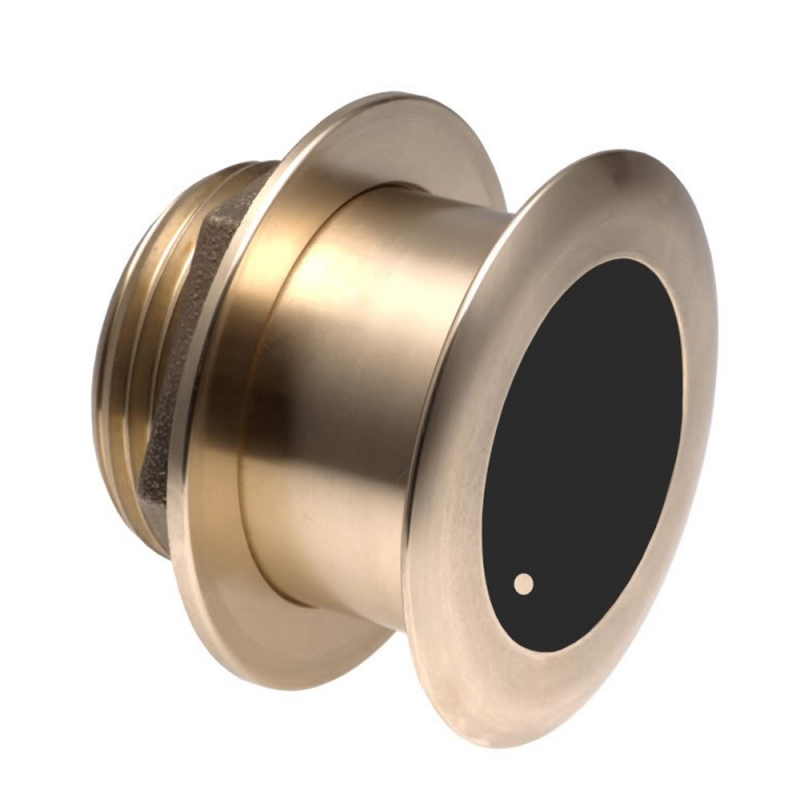

B175H-W 0° through-hull 7 pin transducer - Lowrance, Simrad

Transducer B175H-W 0° pass-through 7 pin - Lowrance, Simrad

1 kw bronze high-band pass-through Chirp transducer with frequencies from 135 to 210Khz. Ideal for use on sport boats and commercial vessels.
€2,011.66
Tax included
HA2020
Quantità

0
This product is no longer in stock



Product Details

Material
Bronze
Compatibility
B Lowrance Elite Chirp Lowrance HDS Carbon Lowrance HDS Gen3 Lowrance HDS Live Simrad NSS Evo2 Simrad NSS Evo3
Frequency
135/210 kHz
Sonar
CHIRP / Fishfinder
Model
B175H-W
Original Ref.
000-11689-001
Maximum depth
152 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning
No
Scanning the sides of the boat
No
3D Scanning
No
Brand
Lowrance/Simrad/B
Power
1 kW
Mounting type
Through installation
Hull angle
From 0° to 7°.
For hulls
Fiberglass Wood
Displayed data
Depth Temperature
Connector PIN
7 pins
Compatible without adapter
Lowrance Elite Chirp Lowrance HDS Gen3
Compatible with adapter
B Lowrance HDS Carbon Lowrance HDS Live Simrad NSS Evo2 with adapter 5605251 Simrad NSS Evo3
Traditional scan
Yes
Transducer Tilt (TILT)
0°

Description

This single-channel, wide-beam transducer offers better resolution and greater coverage in shallower depths. Suitable for fiberglass, wood and metal hulls (when properly insulated). Constructed in three models with different positions of the internal ceramic element to accommodate boats with more or less sloping hulls. For hulls from 0 to 7°. With temperature sensor. Capable of reaching 300* Mt depth (purely indicative value may vary depending on installation and marine conditions). 25° beam aperture cone. Compatible with HDSGEN3, CARBON, Simrad NSS EVO3. Does not allow structure scan and sidescan operation without the appropriate additional transducer. 12 m cable extendable with item 5605250 by another 6 m.
