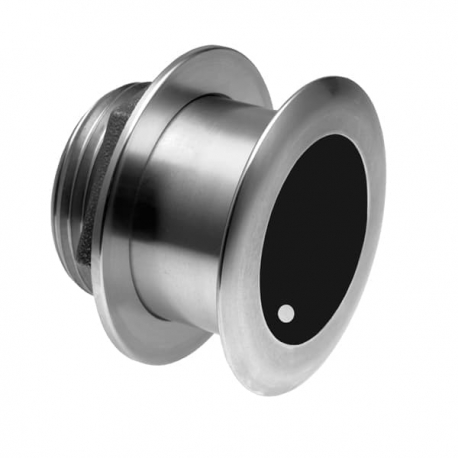

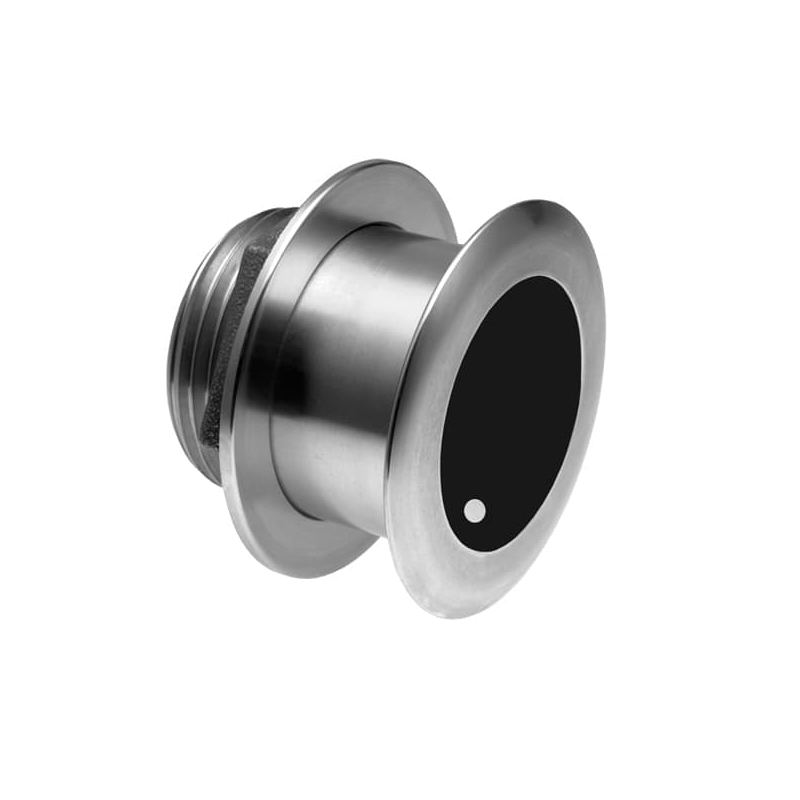

SS175HW 20° through-hole 9-pin transducer - AIRMAR

The SS175H-W is a CHIRP transducer with a stainless steel through-hull, ideal for sport fishing boats and commercial vessels up to 8 meters in size.

Product Details

Material
Stainless Steel
Compatibility
Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Live Simrad GO Series Simrad NSS Evo3
Frequency
150/250 kHz
Sonar
CHIRP / Fishfinder
Model
SS175HW
Original Ref.
000-13781-001
Maximum depth
152 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning
No
Scanning the sides of the boat
No
3D Scanning
No
Brand
Lowrance/Simrad/B
Power
1 kW
Mounting type
Through installation
Hull angle
From 16° to 24°.
For hulls
Fiberglass Metal Wood
Displayed data
Depth Temperature
Cable length
10 m.
Connector PIN
5/9 pin
Compatible without adapter
Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Live Simrad GO Series Simrad NSS Evo3
Traditional scan
Yes
Transducer Tilt (TILT)
20°

Description

This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths. With black 9-pin connector and 10 m cable
