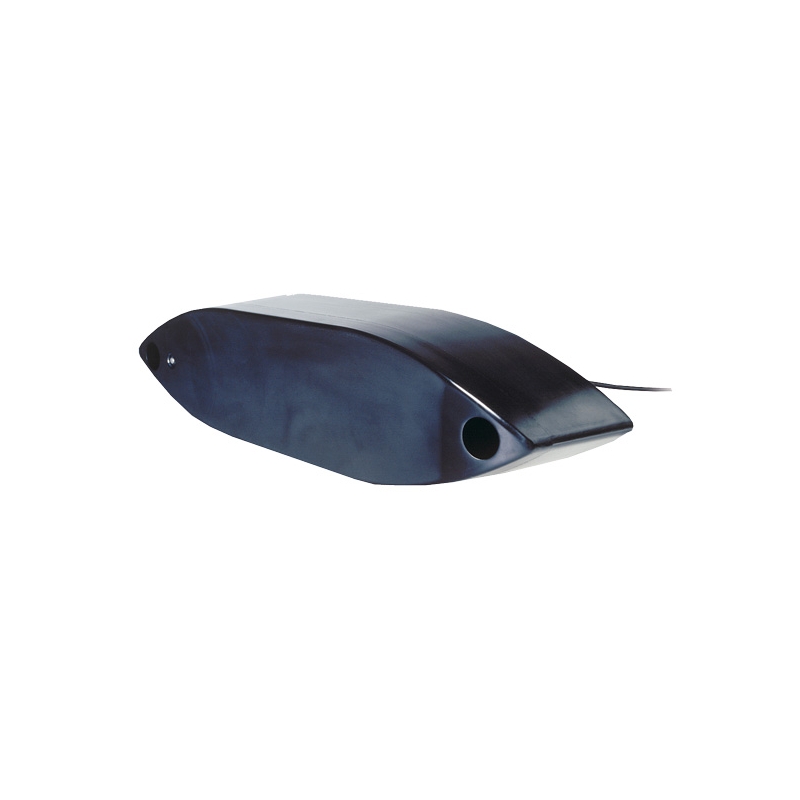

R509LHW through-hull transducer - AIRMAR

R509LHW pass-through transducer - AIRMAR

XSONIC R509LHW New broadband transducers represent the next generation of technology that will enable fishermen to have no secrets when searching for fish.
These transducers are designed for specific use with the NSSevo3 and S5100 high-performance ringer module: Cable length 10 m (33.0 ft)

€6,098.78

Tax included

Reference: HA2056

Quantità

Limited availability

Product Details

Material: Plastic
Compatibility: Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Live Simrad GO Series Simrad NSS Evo3
Frequency: 28/60 kHz 150/250 kHz
Sonar: CHIRP / Fishfinder
Model: R509LHW
Original Ref.: 000-13773-001
Maximum depth: 3048 m. (Depth measurement depends on factors such as bottom type and other water conditions)
High-definition scanning: No
Scanning the sides of the boat: No
3D Scanning: No
Brand: Lowrance/Simrad/B
Power: 3 kW
Mounting type: Through installation
Hull angle: From 0° to 22°
For hulls: Fiberglass Metal Wood
Displayed data: Depth Temperature
Cable length: 10 m.
Connector PIN: 5/9 pin (with 3/9 pin adapter)
Compatible without adapter: Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Live Simrad GO Series Simrad NSS Evo3
Traditional scan: Yes
Transducer Tilt (TILT): Adjustable (Fairing Block)
