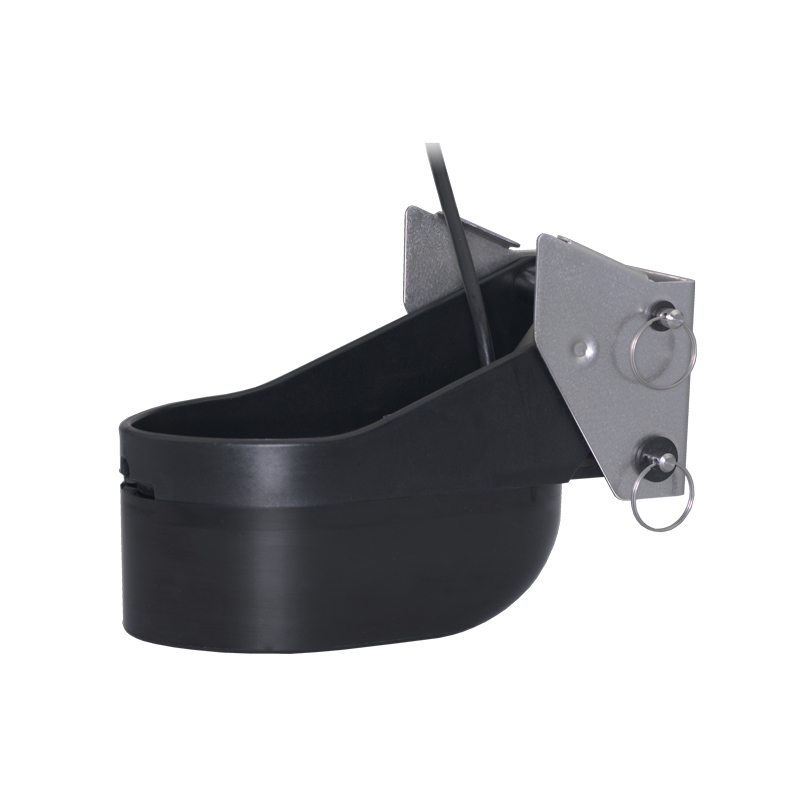

Transducer TM185HW stern - AIRMAR

Frequency: 150-250 kHz
constant beam width 25°
fast and deep response from water
temperature sensor
urethane housing and stainless steel mounting arm
boat size: 8 to 12 mt. (25' to 40')
Boat type: outboard and I/O
Hull type: fiberglass, wood, metal
It can be upgraded with TM258, TM260, TM265, and TM275 mounts

€1,462.78

Tax included

Reference: HA2061

Quantità

Limited availability

Product Details

Material: Plastic
Compatibility: Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Gen3 Lowrance HDS Live Simrad GO Series Simrad NSS Evo2 Simrad NSS Evo3
Frequency: 150/250 kHz
Sonar: CHIRP / Fishfinder
Model: TM185HW
Original Ref.: 000-13997-001
Maximum depth: 152 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning: No
Scanning the sides of the boat: No
3D Scanning: No
Brand: Lowrance/Simrad/B
Power: 1 kW
Mounting type: Stern installation
Hull angle: From 0° to 90°
For hulls: Fiberglass Metal Wood
Displayed data: Depth Temperature
Connector PIN: 5/9 pin
Compatible without adapter: Lowrance Elite FS Lowrance Elite ti Lowrance Elite ti2 Lowrance HDS Carbon Lowrance HDS Live Simrad GO Series Simrad NSS Evo3
Compatible with adapter: Lowrance HDS Gen3 and Simrad NSS Evo2 with adapter cable 000-13977-001
Traditional scan: Yes
