B744V pass-through transducer - Raymarine

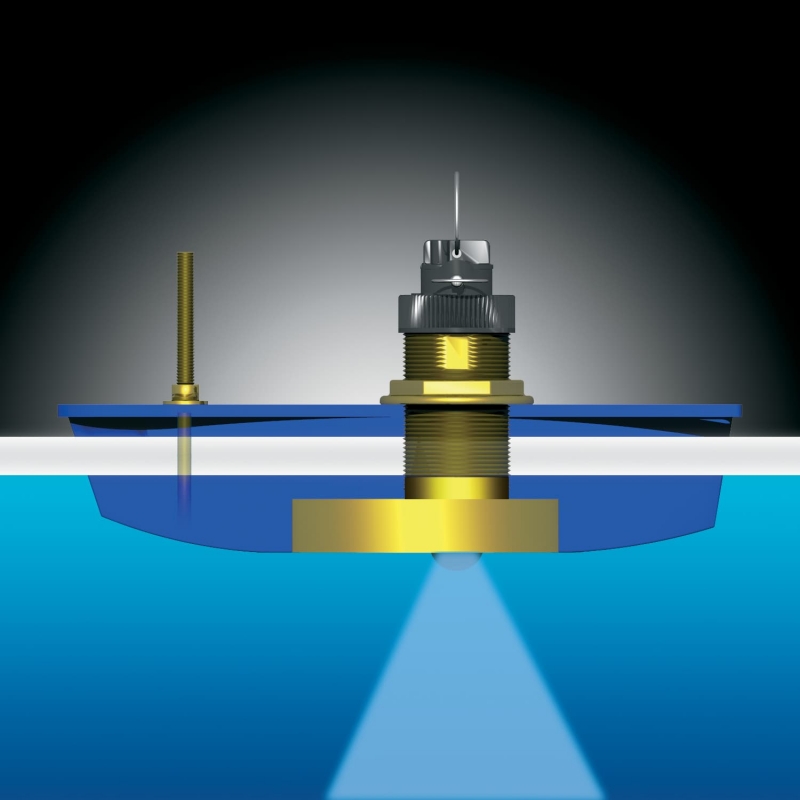

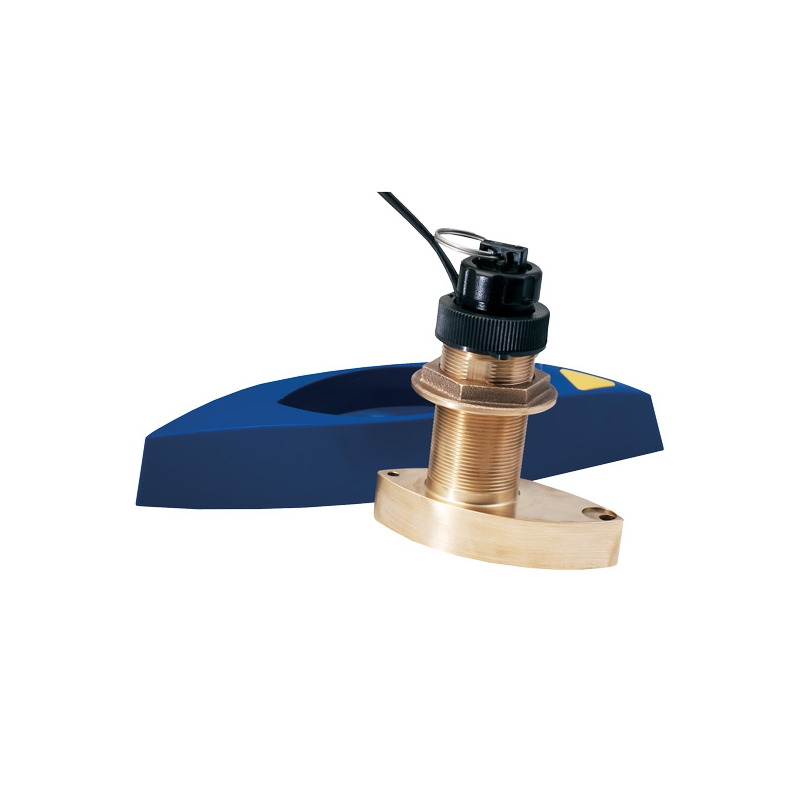

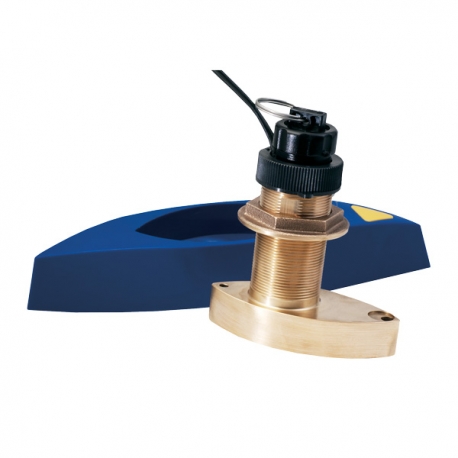

The B744V is a TRIDUCER® multisensor featuring depth, velocity, and temperature in a single housing. The single 50/200 kHz, dual-frequency ceramic element provides excellent target detail in shallow water at 200 kHz and good bottom tracking in deep water at 50 kHz.

€823.50
Tax included
HA2065
Quantità

0
This product is no longer in stock



Product Details

Material
Bronze
Compatibility
Raymarine Axiom DV Raymarine Axiom Pro RVX Raymarine Axiom RV
Frequency
50/200 kHz
Sonar
CHIRP / Fishfinder
Model
B744V
Original Ref.
A66091
Maximum depth
365 m. (Depth measurement depends on factors such as the type of bottom and other water conditions.)
High-definition scanning
No
Scanning the sides of the boat
No
3D Scanning
No
Brand
Raymarine
Power
600 W
Mounting type
Through installation
Hull angle
From 0° to 24°
For hulls
Fiberglass Wood
Displayed data
Depth Speed Temperature
Cable length
10 m.
Connector PIN
8 pins
Compatible with adapter
Axiom Pro RVX with adapter A80496 Axiom RV with adapter A804489 Raymarine Axiom DV with A80485 adapter
Traditional scan
Yes
Transducer Tilt (TILT)
Adjustable (Fairing Block)
